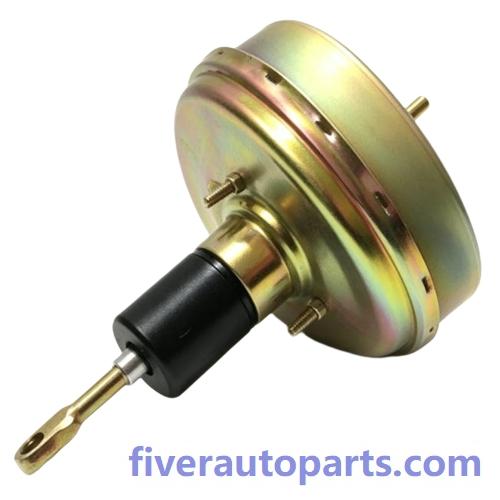

Vacuum Booster 9945763 for Fiat 1V Brava BZ DS 1997-1998

Part Number: 9945763, B18F0224, 204125444,204125724, 204125436, 9948317, 9945761

Applications:

Fiat 1V Brava BZ DS 1997-1998
Fiat 1U Bravo BZ DS 1997-1998
Fiat PC Coupe 1994-1996
Fiat PX Coupe Gamma 1996-2000
Fiat PT Marea Benzina 1996-1999
Fiat NZ Tempra MAQ.93 1750-2000
Fiat NJ Tempra MQ.93 D-TD 1993-1996
Fiat NG Tipo 1750-2000 1990-1993
Fiat NT Tipo MAQ.93 D-TD 1993-1995
Fiat NS Tipo MQ.93 1370-1580 1993-1995
Fiat NU Tipo MQ.93 1750-2000 1993-1995
Alfa Romeo U1 145 DS 1994-1996
Alfa Romeo T5 145 Gamma 97 1997-1999
Lancia RY Dedra Benzina 1989-1994
Lancia SL Dedra FL 1994-1999
Lancia SM Dedra FL 1995-1999

What is a vacuum brake booster?

A vacuum brake booster is a dynamic braking system that uses engine vacuum to assist in applying force to the brake pedal. It is designed to make it easier for the driver to depress the brake pedal and achieve effective braking. Vacuum brake boosters use the vacuum created in the intake manifold of the engine to work. When the driver depresses the brake pedal, the valve opens, allowing vacuum from the engine to enter the brake booster. The resulting vacuum pressure helps increase the force applied by the driver, making the braking process easier and more efficient. Overall, the vacuum brake booster is an important part of the modern braking system, which greatly improves the braking performance and enhances the safety and control of the vehicle.

See the following the whole brake system work circuit, it will give a general idea about booster.

brakesystem1.jpg" alt="Brake System">

Advantages on FIVER’s Vacuum Brake Booster：

◆ We have more than 8000SKUs on Vacuum Brake Booster, they covered 85% of car models all over the world, and keep developing for the new coming models.

◆ Strong technical support, and customized design, drawing/sample based developing is available.

◆ High quality with long time warranty.

◆ We research more deeper: Some original design weaknesses are corrected to make a longer lasting part.
